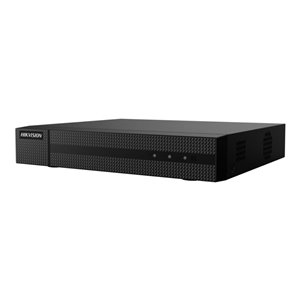

specs
5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
HDTVI signal transmission 1080P up to 800 meters and 720P up to 1200 meters
8 BNC channels up to 5MP (BNC inputs can be converted to IP) with coaxitron support
8 8MP IP channels (added to BNC inputs)
Video compression: H.265 +, H.265, H.264 +, H.264
HDMI (4K) and VGA (1080P) video output
1 RCA input / 1 RCA audio output
8 audio inputs through coaxial cable
Two-way audio via RCA input / output
Audio compression: G.711u
Recording resolution: 5MP, 4MP, 1080P, 720P, WD1, 4CIF, VGA, CIF
32 Mbps maximum incoming bandwidth
Main Stream: 5MP (12 ips), 4MP (15 ips), 1080P, 720P, WD1, 4CIF, VGA, CIF (25 ips)
Secondary stream: WD1, 4CIF, CIF (25 ips)
8-channel synchro playback
Supports multiple VCA (Video Content Analytics) events
Supports line crossing detection and intrusion detection on all channels, and 2-channel sudden scene change detection
Smart search
Internal capacity for 1 SATA HDD up to 10TB (sold separately)
Self-adaptive Gigabit (10/100 / 1000M) RJ45 network port
ONVIF compliant
Remote access for up to 64 users
Communication ports: 2 USB 2.0 ports
Power supply: 12V DC / 1.8A (≤20W, not counting discs)
-10 ° C ~ + 55 ° C operating temperature
10% ~ 90% relative humidity
Dimensions: 260 (W) 45 (H) x 222 mm
Weight: ≤1 kg
Desktop installation
