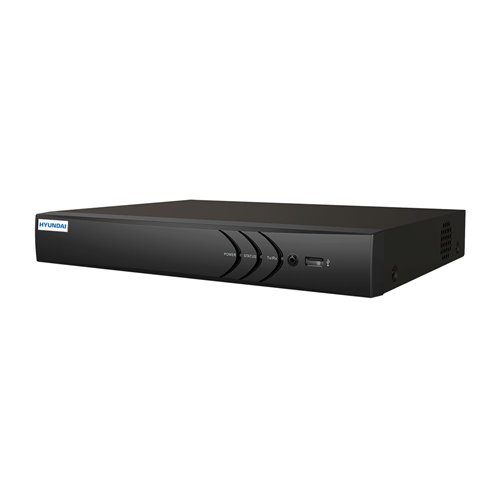

HYU-789 - ZVR 5 w 1 z 16 kanałów HDCVI / H ...

Features

    Behavioral analysis based on deep-learning or face detection
    Video compression H.265 Pro / H.265 Pro / H.265 / H.264 + / H.264
    5-in-1 video input (HDCVI / HDTVI / AHD / CVBS)
    16 BNC inputs
    2 + 16 IP channels at 6 megapixels
    HDTVI 1080P transmission up to 800 meters
    Allows up to 10TB per hard drive

Specs

    ZVR 5-in-1 16-channel H.265 Pro / H.265 Pro / H.265 / H.264 + / H.264 format
    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
    16 BNC inputs (supports coaxitron):
        HDTVI: 3MP (channels 1 and 2 only), 1080P @ 25 ips, 720P @ 25/50 ips
        HDCVI: 4MP, 1080P, 720P @ 25 ips
        AHD: 4MP, 1080P, 720P @ 25 ips
        CVBS: Analog: 960H
    2 IP inputs (up to 18) at 6MP
    Simultaneous HDMI and VGA (1080P) outputs
    BNC output (1.0 Vp-p)
    Two-way audio
    1 RCA input / 1 RCA audio output
    Recording resolution: 4M-N, 3MP, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
    Main stream with 1080P Lite mode disabled:
        Stream 4MP: 4M-N (15 ips), 1080P Lite, 720P, WD1, 4CIF, VGA, CIF (25 ips)
        Stream 3MP: 3MP, 1080P, 720P, VGA, WD1, 4CIF, CIF (15 ips)
        Stream 1080P: 1080P, 720P (15 ips), VGA, WD1, 4CIF, CIF (25 ips)
        Stream 720P: 720P, VGA, WD1, 4CIF, CIF (25 ips)
    Main stream with 1080P Lite mode activated:
        4M-N, 3MP (15 ips), 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)
    Secondary stream: WD1, 4CIF (12 ips), CIF (25 ips)
    16-channel synchro playback
    Internal capacity for 1 SATA HDD up to 10TB (sold separately)
    Graphical User Interface (GUI) and One-Touch Start Recording (Wizard) support
    Smart search for more efficient playback (for NEXTGEN IP cameras)
    Supports multiple VCA (Video Content Analytics) events from IP cameras
    Supports 1 channel HD face detection and capture (with disabled people / vehicle analysis)
    Supports up to 2 channels of false alarm reduction in human / vehicle analysis (with detection and facial capture disabled)
    Self-adaptive RJ45 (10/100 / 1000M) Ethernet network interface
    Network protocols: TCP / IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
    ONVIF compliant
    Remote access for up to 128 users
    Remote access through iPhone / iPad, Android devices
    Multi browser compatibility: Chrome, Firefox, Safari, IE
    P2P in the cloud, DDNS DEMES, Push and channel zero
    RS48 half-duplex port
    1 USB 2.0 port + 1 USB 3.0 port
    Power: 12V DC
    Consumption: ≤24W
    Operating temperature: -10 ° C ~ + 55 ° C
    Relative humidity: 10 ~ 90%
    Dimensions: 315 × 242 × 45mm
    Weight: ≤2 kg
