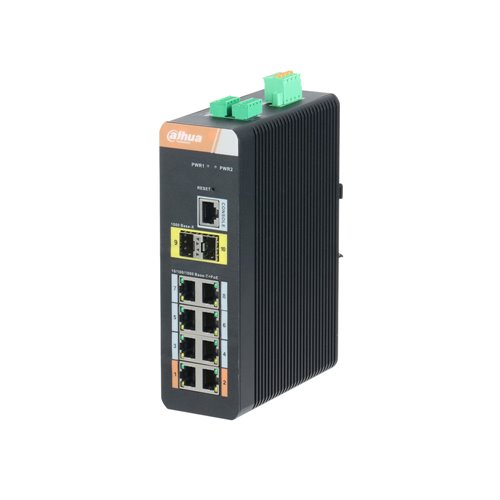

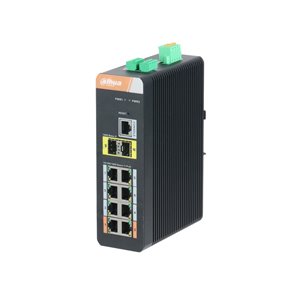

PFS4210-8GT-DP - Przełącznik przemysłowy PoE (L ...

Features

• PFS4210-8GT-DP
• PoE switch manageable L2
• IEEE802.3af, IEEE802.3at supported
• Hi-PoE 60W supported
• Network redundance: STP / RSTP / MSTP
• Supports L2 functions that includes VLAN, link agreggation, IGMP snooping, IGMP, ROMN, ACL, QoS, etc.
• Supports Web, SNMP and CLI management
• Big data cache (4M), live transmission
• IP40 full metal enclosure, fully-sealed and dustproof design
• MAC address capacity of 8K
• Dual power input for redundance
• Wide working temperature: -40°C ~ +75°C

Specs

• PFS4210-8GT-DP
• 8x PoE RJ45 10/100/1000 Base-T
• 2x SFP (100/1000 Base-X)
• Supports ring network redundancy using standard STP/RSTP/MSTP protocol
• PoE consumption: ≤30W per port, ≤120W in total, ports 1 and 2 supports Hi-PoE 60W
• PoE protocols: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
• Switching capacity of 28Gbps
• Package transference rate of 14,88Mpps
• Package memory bufer: 4MB
• MAC address: 8K
• VLAN: 802.1Q
• Flow control: Support half-duplex based on back pressure type control. Support full duplex based on PAUSE frame
• Port aggregation: Manual and LACP
• Support many-to-one port mirroring
• Each port support 8 output queue
• Source IP address protection supported
• ARP detection supported
• Support the configuration file upload/download
• Power supply: 9V~57V DC
• PoE: 48V~57V
• Max consumption: ≤120W
• Extended working temperature: -40°C ~ +75°C
• RH 10%~90%
• Lightning-proof 6KV
• Dimensions: 175 x 134 x 53 mm
• Weight: 1,25 kg
• DIN rail mount
