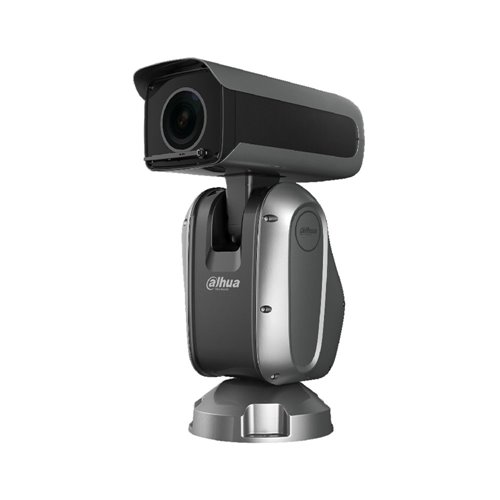

PTZ83840-HNF-WA - Dahua IP Pozycjoner z 8 megapikse ...

Specifications

8 megapixel 1 / 1.8 ”Sony® STARVIS ™ CMOS sensor
Compression formats H.265 / H.264 / MJPEG
Maximum resolution: 8MP (3840x2160), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
Stream 1: 8MP, 1080P, 1.3MP, 720P (1 ~ 25 ips)
Stream 2: D1, CIF (1 ~ 25 ips)
Stream 3: 1080P, 1.3MP, 720P, D1, CIF (1 ~ 25 ips)
Day / night mode with removable mechanical filter
Infrared illumination: 10 high-power LEDs, up to 400 meters
0.005 lux F1.4 (color) / 0.0005 lux F1.4 (B / W) / 0 lux IR On
40X Optical Zoom: 5.6 ~ 224mm
Viewing angle: 63.9 ° ~ 2 ° (H), 35 ° ~ 1.2 ° (V), 66.9 ° ~ 2.4 ° (D)
Automatic, semi-automatic and manual focus control
Automatic iris control
16X digital zoom
White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
Automatic and manual gain control
Backlight compensation (BLC, HLC)
True WDR 120 dB
2D / 3D-DNR noise reduction
Optical defog
Electronic Image Stailizer (EIS)
Areas of interest (ROI)
Video sensor
24 privacy masks
Video metadata: Supports image capture and attribute extraction of the human body, human face, motor vehicles and non-motorized vehicles
Perimeter protection: Line crossing and intrusion, supports alarm activation by target type (person or vehicle), supports filtering of false alarms caused by animals, leaves, bright lights, etc.
Supports autotracking
Supports facial recognition
IVS Intelligence: Abandoned / Lost Objects
Horizontal positioner: 0 ° ~ 360 ° continuous
Vertical positioner: -90 ° ~ 45 °
Manual speed: 0.1 ° ~ 160 ° / sec. (H), 0.1 ° ~ 60 ° / sec. (V)
Preset speed: 160 ° / sec. (H), 60 ° / sec. (V)
300 presets
5 patterns, 8 rounds of up to 32 presets each, 5 scans
DH-SD and Pelco-D / P protocols with automatic recognition
Speed ??setting
1 RS485 port
BNC video output
1 audio input / 1 output
7 alarm inputs / 2 outputs
MicroSD card slot up to 256GB (card not included)
Network interface: RJ45 (10 / 100Base-T)
Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1 / v2c / v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
ONVIF (Profile S / G / T) compliant, CGI
Unicast / Multicast streaming method
Up to 20 users
Remote viewing through IE7 +, Chrome 42+, Firefox 52+ and Safari browsers
Management software Smart Player, Smart PSS, DSS, Easy4ip
Compatible with IOS, Android and Windows Phone mobile devices
Power supply: 36V DC / 2.23A (± 25%)
Consumption: 31.85W, 61.35W with IR illumination and clean-lens
-40 ° C ~ + 70 ° C operating temperature
Relative humidity: ≤95%
Degree of protection IP67
Lightning-proof 6KV
Clean-target
Dimensions: 210.7 (W) x 498.7 (H) 366.5 mm
Weight: 14 kg
Includes power supply
