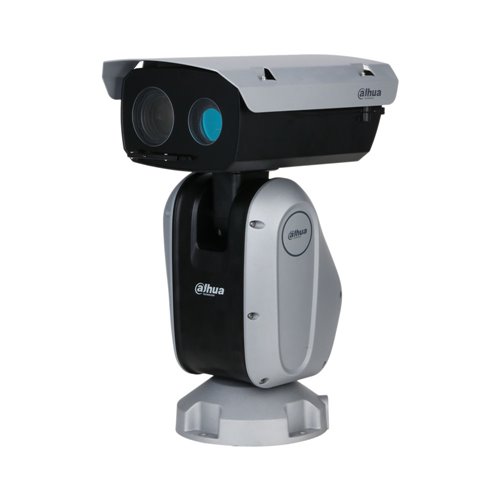

PTZ85260-HNF-WA-FL - Pozycjoner IP z 2 megapikselą ...

Specifications

• PTZ85260-HNF-WA-FL
• 2 megapixel 1/1.8" CMOS sensor
• H.265 / H.264 / MJPEG compression formats
• Highest resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 1080P, 1,3MP, 720P (1~25 ips)
• Stream 2: D1, CIF (1~25 ips)
• Stream 3: 1080P, 1,3MP, 720P, D1, CIF (1~25 ips)
• Day/Night mode with removable mechanical filter
• Laser illumination, up to 1000 meters
• 0.001 lux F1.4 (colour) / 0.0001 lux F1.4 (B/W) / 0 lux IR On
• Optical zoom 60X: 5,6 ~ 336 mm
• Angle vision: 56,4°~1,2°(H), 32,7°~0,7°(V), 63,6°~1,7°(D)
• Auto, semi-automatic and manual focus control
• Auto iris control
• 16X digital zoom
• White balance: Automatic, Indoor, Outdoor, Tracking Manual, Sodium Lamp, Natural light, Street Lamp
• Automatic and manual gain control
• Back Light Compensation (BLC, HLC)
• Real WDR 120 dB
• 2D/3D-DNR noise reduction
• Optical Defog
• Electronic Image Stabilizer (EIS)
• Areas of interest(ROI)
• 24 privacy masks (up to 8 in the same view)
• Video metadata: Supports image capture and attribute extraction of the human body, human face, motor vehicles, and non-motorized vehicles
• Perimeter protection: Line crossing and intrusion, supports alarm activation by target type (person or vehicle), supports filtering of false alarms caused by animals, leaves, bright lights, etc.
• Autotracking support
• IVS Smart
• Horizontal positioner: 0° ~ 360° continuous
• Vertical positioner: -45° ~ 90°
• Manual speed: 0.1° ~ 160°/sec. (H), 0.1° ~ 60°/sec. (V)
• Preset speed: 160°/sec. (H), 60°/sec. (V)
• 300 presets
• 5 patterns, 8 rounds of up to 32 presets each, 5 scans
• DH-SD and Pelco-D/P protocols with automatic recognition
• 1 RS485 port
• BNC video output
• 1 audio input / 1 audio output
• 7 alarm input / 2 alarm output
• MicroSD card slot for up to 256GB (card not included)
• Network interface: RJ45 (10Base-T/100Base-T)
• Network Protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMPv1/v2c/v3 (MIB-2), DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP
• ONVIF (Profile S/G/T), CGI support
• Unicast/Multicast streaming method
• Up to 20 users
• Remote viewing via IE7, Chrome 45, Firefox 52ESR, and Safari browsers
• Smart Player, Smart PSS, DSS, Easy4ip management software
• Supports IOS, Android, and Windows Phone mobile device
• Power supply: 36V DC /5A (±25%)
• Power consumption: 32.4W, 67.5W with IR illumination and lens wiper
• Operating Temperature: -40°C ~ +70°C
• Relative humidity: ≤95%.
• Degree of protection IP67
• Lightning-proof 6KV
• Lens cleaner
• Dimensions: 252.2 (W) x 499.8 (H) 344.6 mm
• Weight: 15.4 kg
• Includes power supply
