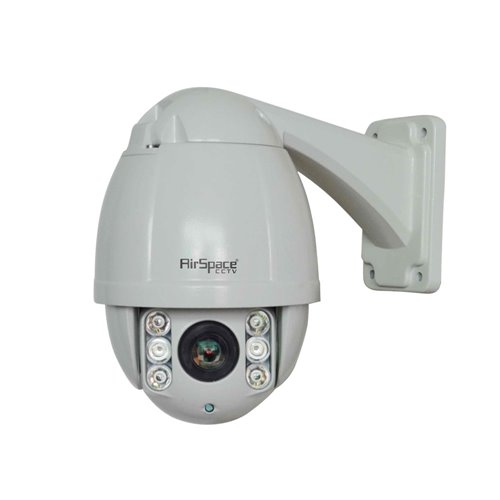

SEV-0004049 - 4 w 1 PTZ Dome, 200 ° / s. Z IR ...





- 1/3” Sony® CMOS sensor
- Digital resolution: 1080P (1920x1080)
- Live transmission without video loss
- Removable mechanical filter
- IR illumination: 6 led array, 50 meters
- Minimum illumination: 0,1 lux (color) / 0,01 lux (B/W)
- 10X optical zoom: 5,1~51 mm
- Viewing angle: 51,8°~5,86°(H), 39,1°~4,4°(V)
- 4 in 1 output: HDCVI / HDTVI / AHD / CVBS 960H
- Display menu via coaxial (500 meter range, only on  CVI/TVI/AHD mode)
- White balance: indoor, outdoor, automatic, manual
- Backlight compensation (BLC)
- Digital WDR
- Horizontal positioner: 360°, autoflip 180°
- Vertical positioner: 93°, autoflip 93°
- Speed: 0,02°~200°/sec. (H), 0,02°~80°/sec. (V)
- Preset speed: 1~64 grades
- Speed ratio supported
- 220 presets
- Communication: RS485, coaxial cable
- 3 round groups, 16 guard points, A-B Scan (1~64 grades)
- Pattern Scan Record: Max. 512 commands
- Idle mode: Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None
- Idle time: 1 to 60 minutes (configurable)
- Baud rate: 1200/2400/4800/9600bps
- Power supply: 12V DC /3A
- Consumption: ≤15W
- Working temperature on indoors: 0°C ~ +40°C
- Working temperature on outdoors: -40°C ~ +60°C
- RH: ≤95% (without condensation)
- IP66
- Lightning-proof de 6KV
- metal case
- 4,5" dome
- Wall mount included
