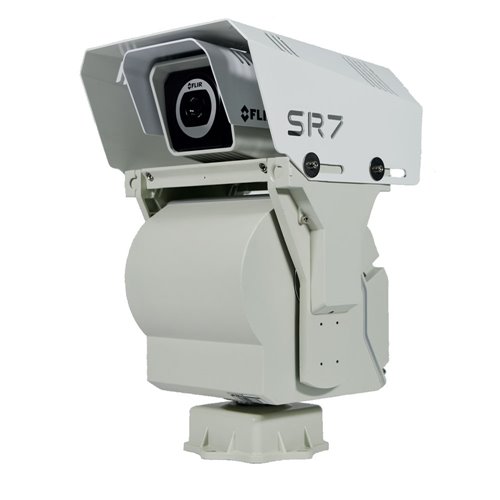

Term-80 - SR7FIRE-MD System dla pożaru Detekto ...

Pan-Tilt unit features
- IP66 industrial range
- 360° continuous, Pan 60°/s and Tilt 30°/s speed
- Power supply: 24V AC (TERM-74 recommended, not included)
- Thermal or dual system installation permited (thermal + motorized D&N)
- Analisys based on Presets (unlimited) of 5 to 10 seconds per position
- TERM-69 supported to manage manually a remote reboot (recommended)
- TERM-71 license included of fire analytics for industrial environments

Thermal camera features
- 35 mm lens
- Horizontal viewing angle: 13°
- Vertical viewing angle: 10°
- Pixel size: 25 µm
- CIF
- HA: 616 HA (optimal), 962 HA (max)
- Overheating range: 1.400 m (optimal), 1.750 m (max)
- 1m³ flame range: 155 m (optimal), 175 m (max)
- 0,4m³ flame range: 98 m (optimal), 110 m (max)
- 0,1m³ flame range: 49 m (optimal), 55 m (max)
- IP video H.264/MPEG-4 & MJPEG
- Multiprotocol system via IP
- Working temperature range: -35°C ~ +55°C
- IP66

TERM-57 server (not included) with pre-installed analytic software
- PC server with 23” monitor, keyboard, mouse and alarm (8E/8S)
- Management: up to 5 thermal channels of industrial fire analytics or overheating
- Capacity to detect overheating and flame alerts
- XML interface for software platform integration
- Via integration interface data is sended: position, distance and object type detected (overheating o flame)
- IP video transmitted via coded RTSP H.264 withCIF and 4CIF resolution
- Allows armed / disarmed scheduling or change of alert type (overheating or flame)
- Cartography over map
- Sensor positioning on map
- Sensor and video management status display
- Cartography pointing
- Manual pointing
- Parameter change
- Alart management
- Video-recording management
- Preset management
- Video-analytic schedule
- Management and definition mask
- Video-analytic configuration and definition
- Compatible App SR7 (available soon) with push notification
- Requires TERM-71 activation license per camera (included on Pan-Tilt systems)

Notes
- Optional: Start-up "on site" and installation of towers (turnkey)
- Radio link not included: 2Mbps Minimum Upload / Download required per camera
- TERM-58: Annual maintenance "online" by installation (mandatory)
- Requires a personalized pre-study for each project (contact your sales person)
