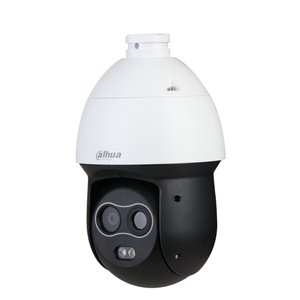

TPC-SD2221-B3 - IP / HDCVI / Analogowy PTZ Thermal D ...

Features
- Long life sensor, Uncooled VOx Microbolometer
- Effective pixels: 256 x 192
- Pixel size: 12 um
- Thermal sensitivity: <50mK
- Spectrum range: 8 ~ 14 um
- Focal length: 3.5 mm
- Angle of vision: 50.6 ° x 37.8 °
- Effective distance in people (1.8 m x 0.5 m): Detection (146 m), recognition (38 m), identification (19 m)
- Effective distance in vehicles (2.3m x 2.3m): Detection (389 m), recognition (97 m), identification (49 m)
- BNC video output (HDCVI / CVBS)
- 18 color palettes: whitehot, blackhot, ironrow, icefire, fusion, rainbown, globow, iconblow1, iconblow2, etc.
- Supports ROI
- Videosensor of 4 rectangular zones
- Privacy mask of 4 rectangular zones
- Supports autotracking
- Intelligent detection: Line crossing, intrusion, detection of people and vehicles, detection of abandoned / lost objects, fire detection, alarm, etc.
- Video compression H.265, MJPEG
- Thermal 1 stream: 1280 * 960/1024 * 768/640 * 480/256 * 192 @ 30fps
- Thermal Stream 2: 640 * 480/256 * 192 @ 30fps
- Horizontal positioner: 0 ° ~ 360 ° continuous
- Vertical positioner: -15 ° ~ 90 °, autoflip 180 °
- Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
- Preset speed: 0.1 ° ~ 240 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
- 300 presets, DH-SD and Pelco-P / D protocols with automatic recognition
- 5 patterns, 8 rounds, Auto Pan, Auto Scan
- G.711a / G.711Mu / AAC audio compression
- 1 audio input / 1 output
- 2 inputs / 1 alarm output
- MicroSD card slot up to 256GB (card not included)
- RS485 port
- Ethernet: RJ45 (10/100 Base-T)
- Protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 / v6, SNMP, QoS, UPnP, NTP- Compatible with Onvif, PSIA, CGI
- Unicast / Multicast
- Up to 20 users
- Power supply: DC 12V ± 15% / PoE +
- Consumption: Max. 24W
- Working temperature: -30ºC ~ + 60ºC (<95% RH)
- Degree of protection IP66
- Dimensions: Ø295 x 160 mm
- Weight: 3.2 kg
- Includes wall bracket, power not included
