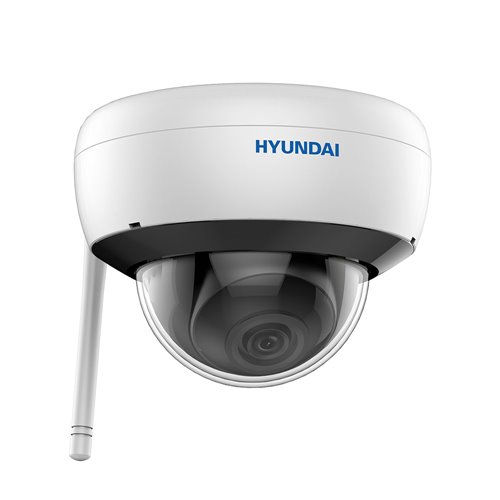

Matryca CMOS 1/3 "4 megapiksele - HYU-664

features

• HYU-664
• CMOS sensor 1/3 "4 megapixels
• Resolution of 2560x1440 at 20 ips
• 2.8 mm fixed optics
• WiFi connectivity
• Video compression H.265 + / H.265 / H.264 + / H.264
• Digital reduction of 3D noise
• Incorporates microphone (mono sound)
• Degree of protection IP66

Specifications

• HYU-664
• CMOS sensor 1/3 "4 megapixels
• Digital resolution: 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), etc.
• Compression format H.265 + / H.265 / H.264 + / H.264 / MJPEG
• Main stream: 4MP (20 ips), 3MP, 1080P, 720P (25 ips)
• Secondary Stream: 640x480, 640x360, 320x240 (25 ips)
• Day / night mode with removable mechanical filter
• Infrared lighting: 30 meters
• Minimum illumination: 0.028 lux F2.0 color / 0 lux IR On
• 2.8 mm fixed optics
• Viewing angle of 100 ° H, 55 ° V and 117 ° D
• Automatic gain control
• Backlight compensation
• Digital WDR
• Digital reduction of 3D noise
• Privacy masks, mirror, watermark
• 1 ROI zone in main stream
• Adjustment of brightness, saturation, contrast and sharpness through client software and web browser
• Incorporates microphone with monaural sound
• Reset button
• Slot for MicroSD / SDHC / SDXC cards up to 128GB (card not included)
• Network interface: RJ45 (10 / 100M) auto-adaptive
• Network protocols: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
• It incorporates WiFi 802.11b / g / na 2.4GHz with WEP security, WPA / WPA2, WPA-PSK / WPA-PSK2 and WPS
• WiFi range up to 50 meters in open field without obstacles
• Compatible with ONVIF (Profile S / G), ISAPI
• Plug & Play connection with NVR NEXTGEN
• Compatible with DDNS DEMES
• Degree of protection IP66
• Power: 12V DC, max 6W
• Operating temperature of -30 ° C ~ + 60 ° C
• Humidity: <95%, without condensation
• Plastic and metal housing
• Dimensions: Ø121.4 x 92.2 (H) mm
• Weight: 467 g
• 2AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 75 ° (TILT)
• The feeder is sold separately
